- 13'
- ball stop behind the goals
- 3.3'
- board height, sound-insulated
- 2
- doors at each goal end

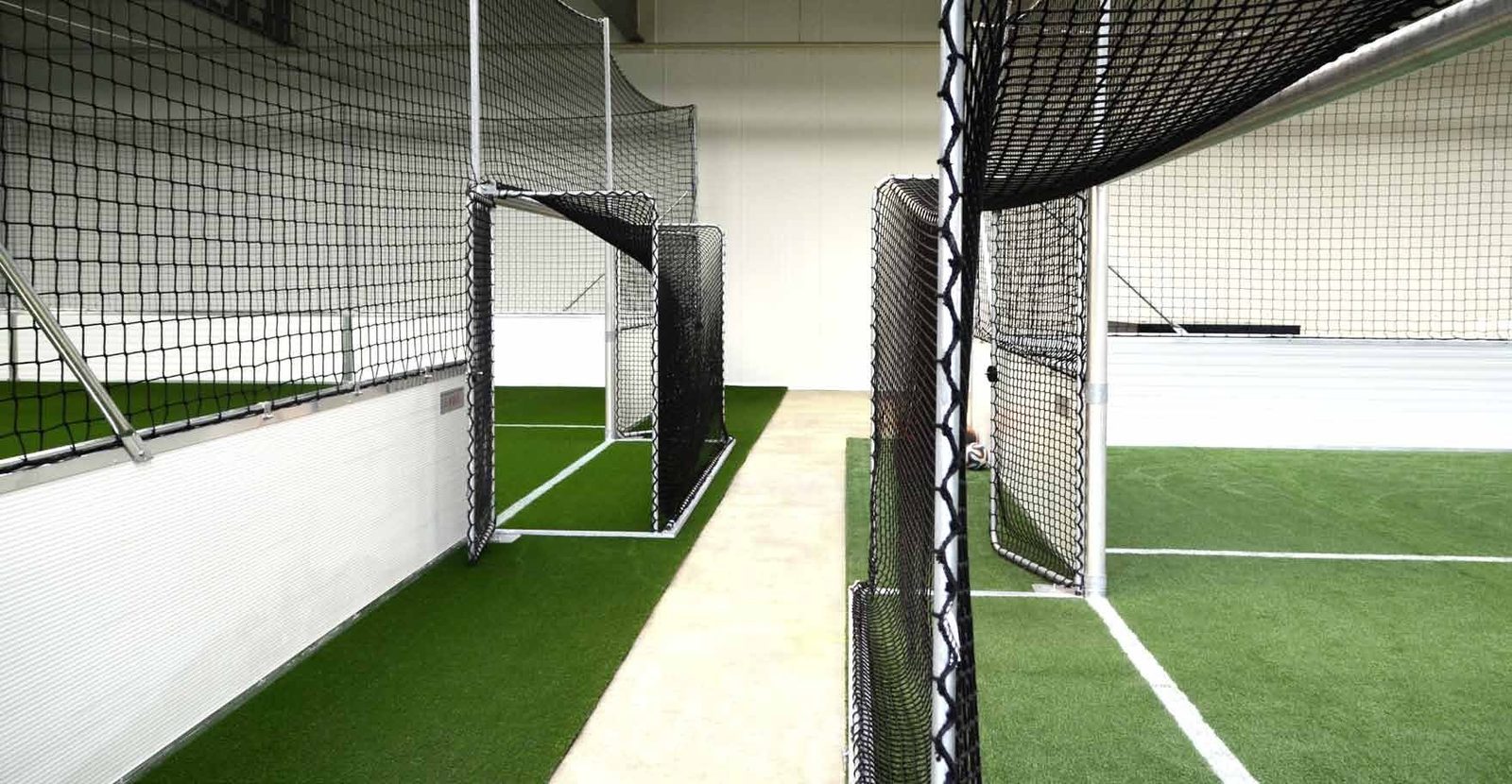

- 98' x 49'
- or sized to fit your facility
For any facility with a level floor
The SoccerGround Indoor can be set up in any facility with enough ceiling height for professional soccer and a level floor, e.g. asphalt, concrete, hard court, artificial turf, wood, carpet or sand.
Ideally the board system is screwed or anchored to the floor. If the floor must not be damaged or the field is to be moved later, we offer a solution for that too. Installation is usually carried out by the SoccerGround installation team, which also takes care of special requirements such as anchoring in concrete floors or attaching nets to ceilings and walls.
Applications
- Professional sports halls
- Indoor soccer centers
- Former tennis halls being converted
- Indoor spaces, e.g. malls and trade shows
- Hotels, e.g. sports hotels and resorts
- Amusement parks and indoor playgrounds
Site requirements
Ideally, the board system is screwed to the bare concrete floor via flat base plates on the outside of the field, which are then covered by the final floor covering, e.g. carpet.
Installation without anchoring is also possible; we will be happy to advise you on the right system for your facility.
Technical details
- Ready-to-play system of boards, goals and ball-stop nets behind the goals
- Profiles made of steel (e.g. board connectors) and corrosion- and impact-resistant aluminum (e.g. handrail and goal)
- Access through 2 doors at each goal end; a door in the boards on request
- Ball-stop nets behind both goals, 13' incl. boards or higher
- Usually completed with side nets for a ball stop all the way around, especially in facilities with several fields
- In professional sports halls, side/divider nets at least 13' high and, if needed, roof nets: anchored to the system or suspended from the ceiling
- Boards double-walled with a special foam core: high-quality and sound-insulated
- Boards 3.3' high, usually approx. 16' long (depending on court size)
- Plenty of space inside and outside for sponsor advertising, by direct print or interchangeable vinyl graphics
- Boards in SoccerGround green; other RAL colors for boards and nets on request
Field and goal sizes
Like all our field systems, the Indoor is sized to fit your facility: several small fields for kids and smaller teams, or large fields for teens and adults. Dividing boards between two fields can be made removable, to turn several fields into one large one.
Optional extras
Filled or unfilled, for professional and joint-friendly playing comfort.
Usually with roof net, at least 13' high incl. boards.
Permanent, UV-resistant prints or interchangeable vinyl graphics, gloss or matte.
Eco-friendly LED technology for optimal lighting of your facility.
For example basketball, volleyball or badminton.
Detailed information on request.
