- 0
- foundations needed*
- 3.3'
- board height, sound-insulated
- 10'
- ball stop behind the goals
- TÜV GS
- to DIN EN 15312
No foundations, no holes in the ground
The SoccerGround Advanced is our free-standing stationary system: just as sturdy and built for many years of outdoor use as the Classic, the original DFB mini-pitch. It needs no foundations, grooves or other recesses*: the system simply stands on top of the ground.
That makes it the alternative to an anchored system if the ground must not be altered, the field is to be moved later, or foundations would be costly. You save the effort and cost of socket foundations.
Applications
- Schools, sports schools and boarding schools
- Soccer clubs, sports clubs and soccer associations
- Resorts expanding their sports offering
- Companies with employee sports programs
- Malls, amusement parks and pools
- Parks and playgrounds
- Community organizations for kids, young people and people with disabilities
Site requirements
The Advanced requires no ground anchoring*. The only requirement is a level surface with a stable, load-bearing subgrade, for example asphalt or concrete.
As no holes are made in the ground, the field can even be moved to a new location after a few years.
Technical details
- Needs no foundations*, just a level surface with good load-bearing capacity
- Complete and ready to play: surrounding boards, goals and ball-stop nets behind both goals
- Additional, structurally certified steel handrail along the long sides: gives the system rigidity, so the boards cannot bend or tip over
- The extra weight of the steel handrail and an anti-slip system under the posts ensure maximum stability
- All steel components hot-dip galvanized: permanently weatherproof and corrosion-resistant
- Boards 3.3' (1 m) high, made of double-walled, metal-coated sandwich panels with a special sound-absorbing foam core
- Boards in DFB green; many other RAL colors available for boards and nets
- Goals incl. goal nets integrated into the steel structure; access for artificial turf maintenance vehicles
- Ball-stop nets behind both goals, 10' high incl. boards (higher available); approx. 2" x 2" mesh and 4 mm (5/32") cord: kids cannot climb them and they won't cut into fingers
- The nets are evenly tensioned by stainless steel systems and neatly threaded onto a round tube directly at the edge of the boards
- Access through doors in the goals, TÜV-approved as emergency exits; an entrance door in the boards on request
- Also available as a multi-sport court
- No finger traps, no sharp edges and no protruding corners
- TÜV GS-tested as a complete system and compliant with DIN EN 15312 (freely accessible multi-sport equipment), so the field does not require constant supervision
* Large fields, multi-sport equipment and roof nets usually require a few ground anchors.
Field and goal sizes
As with the Classic, the size can be chosen freely, depending on the available space, the target group and the number of players. Several mini-pitches can be combined board to board.
Optional extras
Professional artificial turf with a shock-absorbing layer, or a synthetic surface for a multi-sport court.
In various heights: standard 10' incl. boards, 13' or 16' safety nets.
For complete protection against lost balls.
For sponsorship activities and to help pay for the field.
Turns the field into a stadium, playable late into the evening.
Basketball, volleyball, hockey, badminton, soccer tennis and more in addition to soccer.
Detailed information on request.

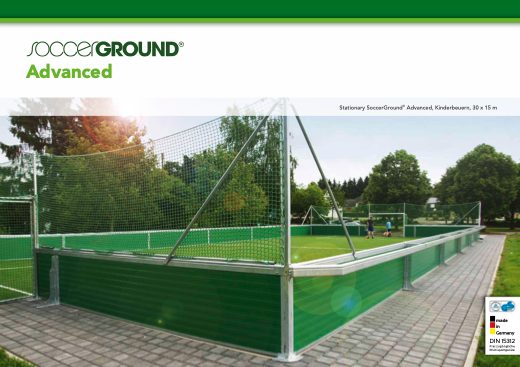

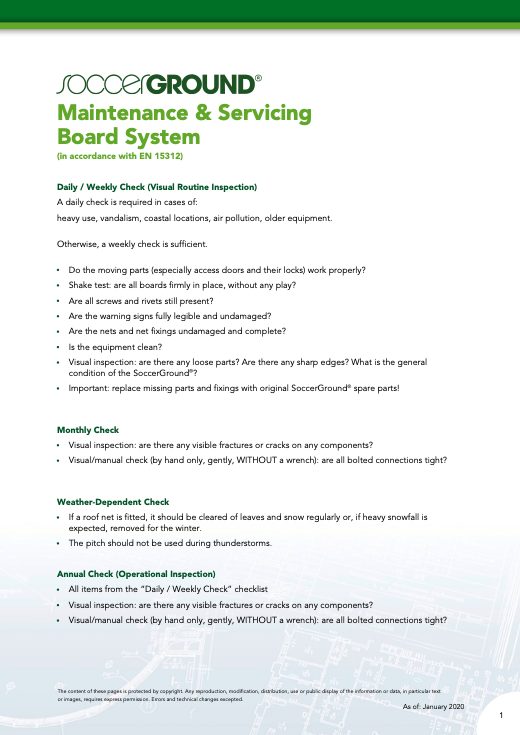

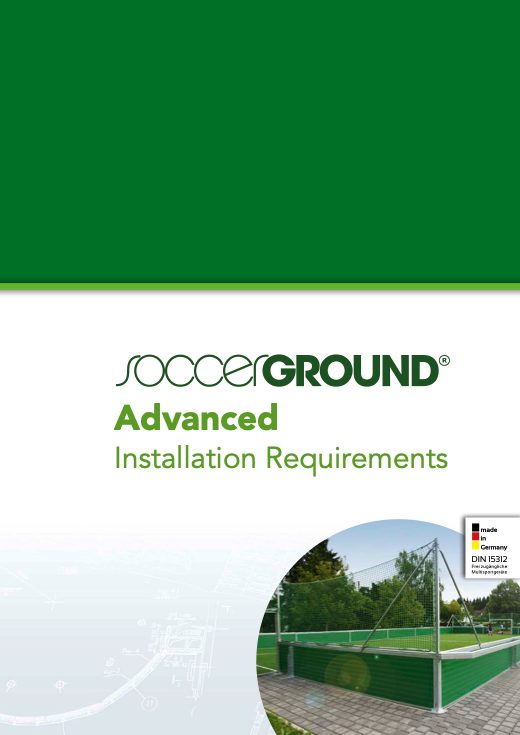

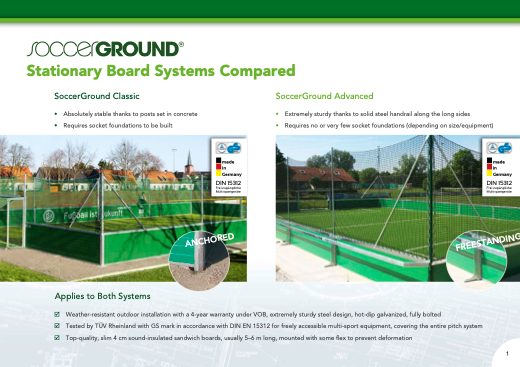

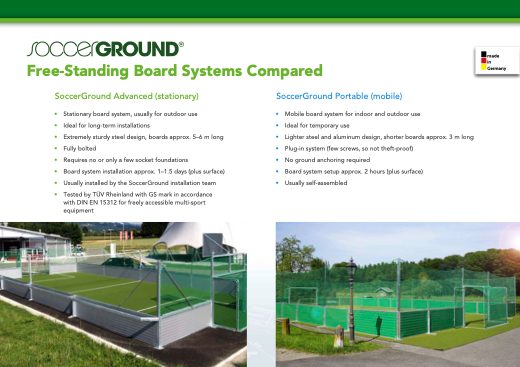

Downloads
Recent builds: SoccerGround Advanced
84 installations with photos, the latest here
Adam R. Scripps Street Soccer USA Park
In the heart of City Heights, San Diego’s first free public street soccer facility offers a powerful example of how community-driven design can revitalize public spaces and bring people together through sport. Built with our durable, small-sided mini-pitch system, this park serves as a safe, highly visible landmark for connection, inclusion, and local pride.
Soccer for Everyone at Centennial Park in Roosevelt, New York
Centennial Park in Roosevelt has a brand new mini pitch that brings fast fun soccer to the heart of the community. The compact court invites quick passes close control and constant action so players of every age can jump in and play right away.
PS/MS 007 Samuel Stern School Mini Pitches
In the center of Harlem, students at PS/MS 007 Samuel Stern School now have their own small-sided soccer fields that add new energy to their school days. The colorful turf courts sit right on the school grounds and transform what used to be a plain outdoor space into a vibrant meeting point for play and learning.
Bank of America Field at Skyline Park
In the heart of downtown Denver a new soccer spot brings color and energy to Skyline Park. Bank of America Field sits just off the 16th Street Mall and invites everyone to play watch and gather. You feel the city around you and the joy of the game right under your feet.
Visa Street Soccer USA Park
Community Comeback: Visa Street Soccer USA Park Opens in San Francisco. Located in San Francisco’s East Cut Crossing stands the inaugural Visa Street Soccer USA Park, a vibrant new community hub featuring two full SoccerGround Advanced mini‑pitches (each roughly 76 × 52 ft), complete with 12 × 4 ft regulation goals and full perimeter netting.
Plan your field
We advise you on size, equipment and site, and send you a quote.
