- 8/6/8
- wire gauge (mm) of the twin-wire mesh
- 10'
- ball stop incl. boards
- Steel
- hot-dip galvanized
- TÜV GS
- to DIN EN 15312
Virtually indestructible
Thanks to its sturdy steel frame, the board system of the SoccerGround Classic is already exceptionally well protected against damage. For public spaces that are regularly exposed to vandalism, the Classic field can be upgraded to resist deliberate damage even better.
Instead of nets, a high-strength twin-wire mesh ball stop makes the court virtually indestructible. Holes in nets are a thing of the past, and with a ball stop all the way around, the facility can also be secured against unauthorized access.
Applications
- Municipalities
- Schools, sports schools and boarding schools
- Sports clubs and associations
- Companies with employee sports programs
- Amusement parks and pools
- Parks and playgrounds
- Programs for at-risk youth
- (Juvenile) correctional facilities
Site and installation
The field is based on the stationary Classic board system, combined with a twin-wire mesh ball stop instead of nets, and completed with artificial turf or a synthetic surface. Multi-sport modules such as basketball and volleyball can be installed.
The board system is anchored in the ground with socket foundations; the area required is shown in the site and foundation plan (depending on size and equipment). We offer a full-service package including professional installation by our team.
Technical details
- Ready-to-play basic equipment: surrounding boards, two 10' x 6.5' goals, twin-wire mesh ball stop behind the goals (10' incl. boards)
- Steel frame, hot-dip galvanized (immersion bath, highest quality class): much more robust than comparable systems made of e.g. aluminum
- Steel goals, fully welded and integrated into the overall structure
- Access through doors in the goals, TÜV-approved as emergency exits
- Ball stop: twin-wire mesh, standard height 10' incl. boards, mesh approx. 2" x 8", wire gauge 8/6/8 mm
- Boards 3.3' (1 m) high, made of double-walled, metal-coated sandwich panels with a special sound-absorbing foam core
- Board colors: green on both sides or gray; other RAL colors on request
- No finger traps, no sharp edges and no protruding corners
- Optional: twin-wire mesh ball stop along the long sides as well, for a ball stop all the way around
- TÜV GS-tested as a complete system and compliant with DIN EN 15312 (freely accessible multi-sport equipment), so the field does not require constant supervision
Field and goal sizes
Various sizes are possible, depending on the available space, the target group and the sport.
Optional extras
Twin-wire mesh on the long sides as well; the facility can be secured against unauthorized access.
Basketball, volleyball and other sports.
Artificial turf or a synthetic surface.
Detailed information on request.

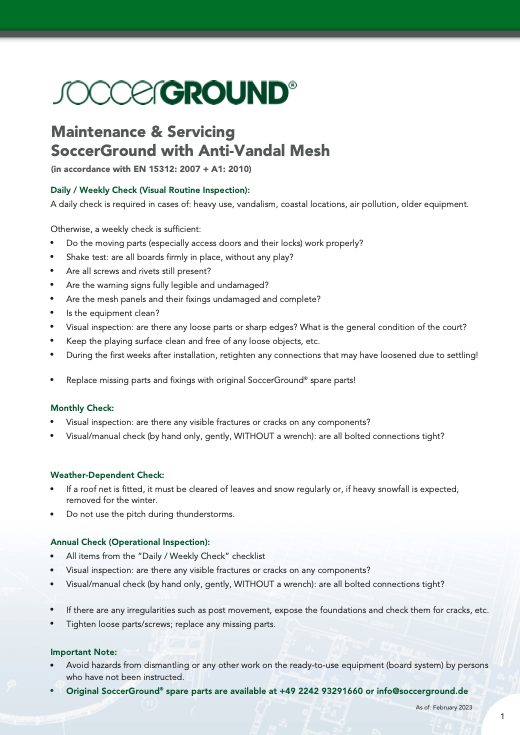

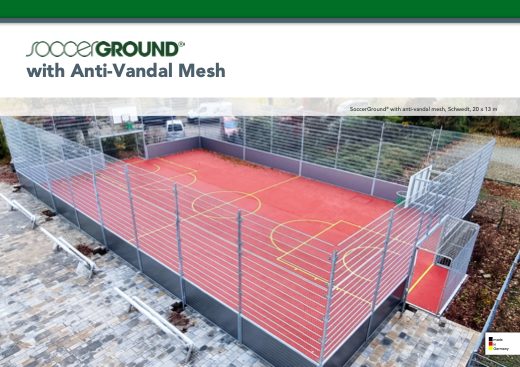

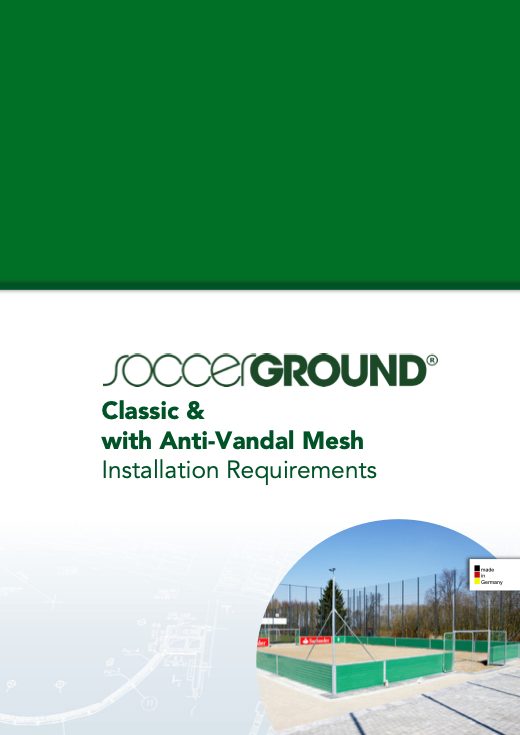

Downloads

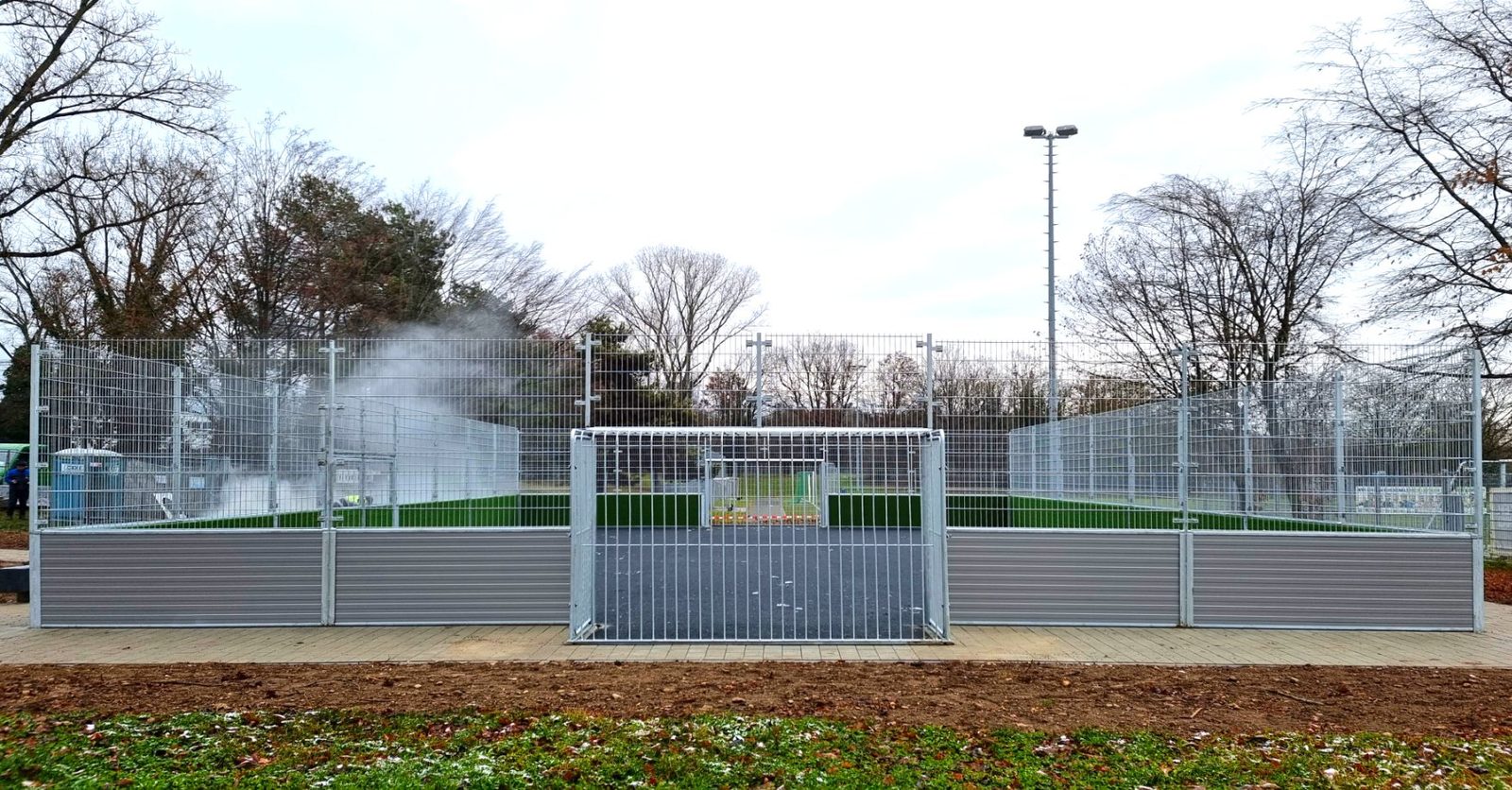

Recent builds: SoccerGround with Anti-Vandal Mesh
29 installations with photos, the latest here
Karlschule Rastatt
Modern Mini-Pitch Debuts at Heinrich-Ritzel-Stadion
At the heart of Michelstadt, the historic Heinrich-Ritzel-Stadion now features a brand-new SoccerGround Classic antivandal mini-pitch. Measuring approximately 65 by 42 feet, the installation brings contemporary small-sided football to this traditional stadium—blending new energy with local sporting heritage.
Hans-Thoma-Grundschule Heddesheim
FV Bad Rotenfels Gaggenau
